Wholesales High Resolution Weighing scales type industrial equipment

General Specifications

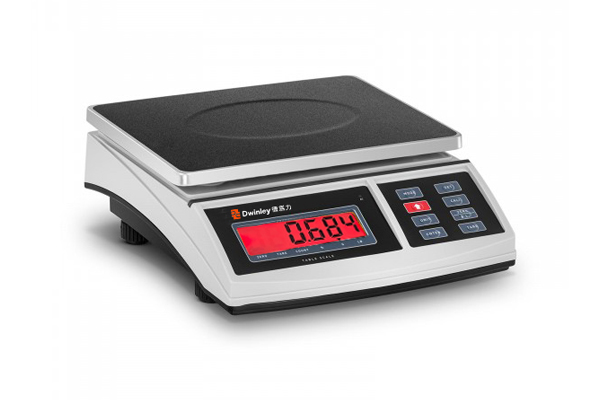

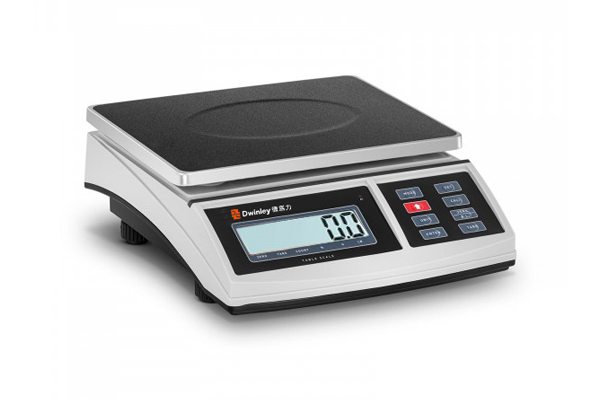

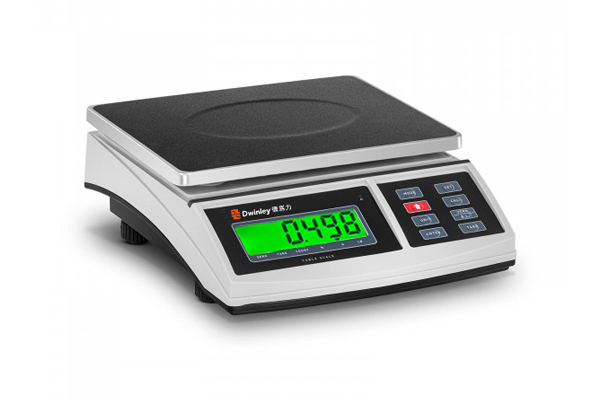

JCS-S Simple Portable Weighing Scales

LCD with backlight and LED display

Simple and easy to operation

With Rechargeable battery and unit switch

.Programmable to meet your needs

.Automatic external with kg mass

.Shipping screw to avoid damage to sensitive components

.Iron plate and with adjusment rubber foot

.Display  LCD with color backlight,LED display
.Capacities 3kg~30kg
.Pan Size 210x250mm
.Keyboard 4keys
.Unit kg/g/lb/oz
.Housing ABS plastic
.Max. Divisions 15,000d
.Operate Tem 0ºC ~ +40ºC
.Power AC adapter(9v/300mA),internal rechargeable battery (4V/4Ah)
.Gross weight 3.5kg
.Packing Master carton packing,dimension 0.017m³
Master carton 5 in 1 packing,dimension 0.085m³

Dimensions(mm)

JCS-S Simple Portable Weighing Scales 00JCS-S Simple Portable Weighing Scales Standard

JCS-S Simple Portable Weighing Scales

Model Number Capacity Readability Division Approval
JCS-3S 3kg 0.2g 15,000d CE
JCS-6S 6kg 0.5g 15,000d CE
JCS-15S 15kg 1g 15,000d CE
JCS-30S 30kg 2g 15,000d CE
