Project Description
Dvl-s1/ single-point / Accuracy C5/ IP65/ parallel beam/ Aluminum/ for platform scale
General Specifications
Model: Dvl-s1
Brand: Dewel Mac
Capacity: 40kg
Usage:: platform scale sensor,bench scale load cells,price computing scale load cells,couting scale.
Dimension:: 30*45*188mm
Applications
- price computing scales
- counting scales
- weighing scales
- retail scales
- bench scales
- platform scales
Applications
- price computing scales
- counting scales
- weighing scales
- retail scales
- bench scales
- platform scales
Description
Dewel Mac Single Point Load Cells have been designed such that their excellent mechanical and measurement properties can be optimally used in a wide range of applications. A Single Point Load Cells is also called Platform Load Cell.
Advantages of DVL Single Point Load Cells / Platform Load Cells:
Quick to install thanks to off-center load compensation at the factory,and only one unit is sufficient to build up a scale.
Model Dvl-s1 load cells are designed to this “single point”type and manufactured from high quality aluminum alloy of aviation standard. Dvl-s1 load cells can be used to measure loads 100g with the measuring accuracy of 0.02% R.O.( R.O.=Rated Output)
Dvl-s1 load cells are mainly used for price computing scales, counting scales, weighing scales, retail scales, bench scales and platform scales.

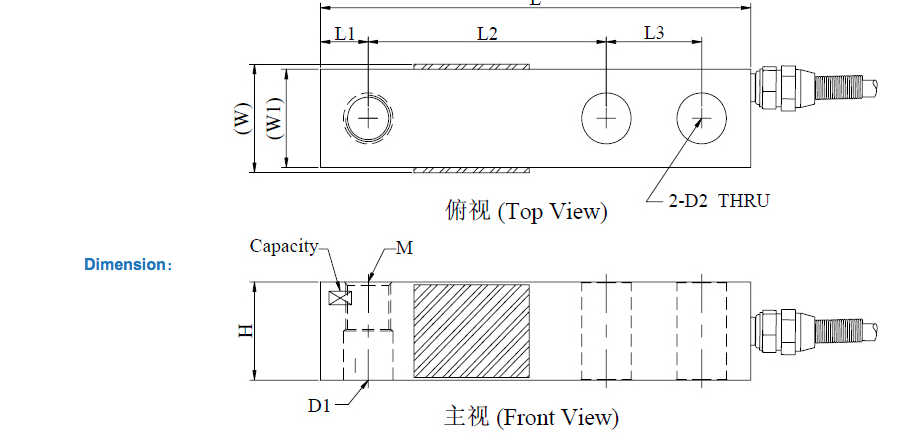

Dimensions(mm)
Technical Data
| Rated Capacity | 10-100 (kg) |
| Accuracy Class | G |
| Rated Output | 2.0± 5%mV/V |
| Zero Balance | ±5%R.O. |
| Input Resistance | 405±10Ω |
| Output Resistance | 350±3Ω |
| Linearlty Error | ±0.015%R.O. |
| Repeatability Error | ±0.01%R.O. |
| Hysteresis Error | ±0.01%R.O. |
| Creep in 30 Min. | ±0.02%R.O. |
| Temp.Effect on Output | ±0.02%R.O./10℃ |
| Temp.Effect on Zero | ±0.02%R.O./10℃ |
| Compensated Temp.Range | -10－+40℃ |
| Excitation,Recommended | 5－12VDC |
| Excitation,Maximum | 18VDC |
| Operating Temp.Range | -20－+60℃ |
| Safe Overload | 150%R.C. |
| Ultimate Overload | 200%R.C. |
| Insulation Resistance | ≥5000MΩ(50VDC) |
| Cable,Length | ø5mm×2m * |
| Protection Class | IP65 |
