Project Description

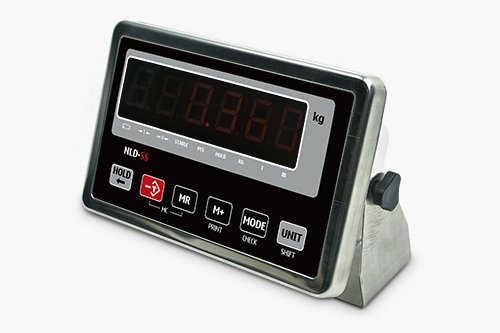

NLD-SS Waterproof Digital Stainless Stee Indicator

General Specifications

NLD-SS Waterproof Digital Stainless Stee Indicator

Large LCD display with backlight and LED display

Stainless steel or mild steel housing for choice

Drive up to 4x350ohm load cells

Double RS232 port interface

Connect to PC,remote display and printer

Battery work up to 70hours of continuous use(without backlight)

.Capacities 10kg~100tons
.Unit kg/g/lb/T optional
.Keyboard 6keys
.Display 6 digit 1.5″LED/ 52mm Large LCD
.Housing Stainless steel
.Max. Divisions 30,000d~60,000d
.Operate Tem 0ºC ~ +40ºC
.Power Adapter 9V/400mA,rechargeable battery (6V/4.5Ah)
.Packing 6pcs in 1 Master carton packing,dimension 0.088m³
.Gross weight 15.5kg

Dimensions(mm)

NLD-SS Waterproof Digital Stainless Stee Indicator 03NLD-SS Waterproof Digital Stainless Stee Indicator 04
