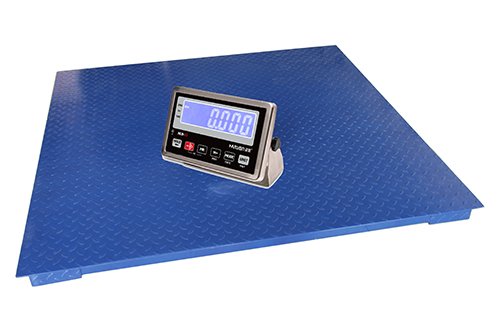

10000 lb Pallet Floor Scale for Warehouse Use
Dwinley’s pallet floor scales are designed to meet the demanding requirements of modern material handling and production workflows. Each unit is engineered with structural rigidity to withstand constant pallet loading, heavy containers, or industrial drums.
Key Features of Dwinley Pallet Floor Scales
- High Accuracy Load Cells: Equipped with precision sensors for consistent and reliable weighing results.
- Low-Profile Platform: Designed for pallet jack compatibility, allowing quick loading and unloading of pallets.
- Easy Calibration & Maintenance: Simple configuration and low upkeep ensure long-term performance stability.
- Digital Display Indicator: Clear LED or LCD readout for easy visibility in busy warehouse environments.
- Custom Platform Sizes: OEM customization available for special dimensions, materials, and integration with conveyor systems.
When a Pallet Floor Scale Is Needed
Dwinley’s pallet floor scales are engineered for reliability and precision in high-volume industrial environments. Each scale is constructed with reinforced platforms and robust frames to endure continuous pallet handling, heavy packages, and large containers.
Featuring advanced load cell technology, these floor scales for pallets provide consistent weight readings even under demanding operational conditions. The low-profile design ensures seamless compatibility with pallet jacks and forklifts, allowing efficient floor-level weighing without additional lifting or handling.
Built with industrial-grade materials, including mild or stainless steel, Dwinley’s pallet floor scales resist corrosion and wear, making them suitable for warehouses, manufacturing plants, and logistics centers. Optional configurations such as remote displays, printers, and support brackets enable businesses to tailor the scales for specific workflows and integration with inventory management systems.
Product Specifications
| Capacities | 1t~5t |

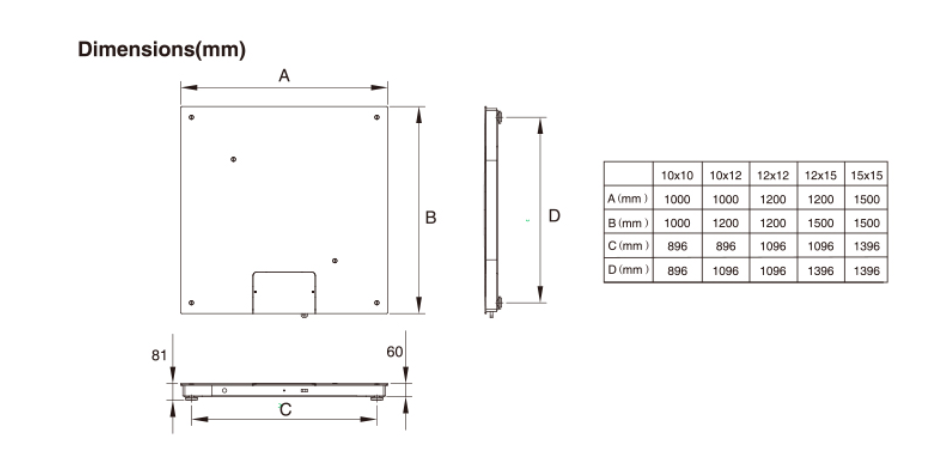

| Platform Size | 1000mmx1000m; 1000mmx1200mm; 1200mmx1200mm ; 1200mmx1500mm; 1500mmx1500mm |
| Housing | Mild steel/Stainless steel |
| Max. Divisions | 3,000e |
| Operate Tem | 0ºC ~ +40ºC |
| Loadcell | 4x 350ohms |
| Packing | Wood box or Paper pallet (with indicator) |
| Durable | up to 50 h battery life, without backlight 70 h |
| Extensive | numerous functions such as adding, taring, zeroing, counting, holding, changing units and calibrating |
| Visible | 184 x 51 mm LCD display with back-lighting |
Buy Pallet Floor Scales in Bulk from Dwinley
Dwinley supplies heavy-duty pallet floor scales built for accurate, floor-level weighing of palletized goods. Each scale features a robust low-profile platform, high-precision load cells, and a clear digital display, ensuring reliable measurements for logistics, manufacturing, and distribution operations.
We offer wholesale options and OEM customization, allowing businesses to order multiple units or tailor platform sizes, materials, and accessories to match specific workflows. Choose Dwinley pallet floor scales to streamline operations, reduce handling time, and maintain precise inventory control in any industrial setting.
Dwinley Pallet Floor Scale – Product Specifications
| Model Number | Capacity | Readability | Division | Weight(kg) | Ctn Size(m) |
|---|---|---|---|---|---|
| NLDSS-1010-1t | 1t | 0.5kg | 2,000e | 65 | 1.03×1.03×0.08 |
| NLDSS-1010-2t | 2t | 1kg | 2,000e | 65 | 1.03×1.03×0.08 |
| NLDSS-1010-3t | 3t | 1kg | 3,000e | 85 | 1.03×1.03×0.08 |
| NLDSS-1012-2t | 2t | 1kg | 2,000e | 85 | 1.03×1.23×0.08 |
| NLDSS-1012-3t | 3t | 1kg | 3,000e | 85 | 1.03×1.23×0.08 |
| NLDSS-1212-1t | 1t | 0.5kg | 2,000e | 100 | 1.23×1.23×0.08 |
| NLDSS-1212-2t | 2t | 1kg | 2,000e | 100 | 1.23×1.23×0.08 |
| NLDSS-1212-3t | 3t | 1kg | 3,000e | 100 | 1.23×1.23×0.08 |
| NLDSS-1215-1t | 1t | 0.5kg | 2,000e | 125 | 1.23×1.53×0.08 |
| NLDSS-1215-2t | 2t | 1kg | 2,000e | 125 | 1.23×1.53×0.08 |
| NLDSS-1215-3t | 3t | 1kg | 3,000e | 125 | 1.23×1.53×0.08 |
| NLDSS-1515-1t | 1t | 0.5kg | 2,000e | 150 | 1.53×1.53×0.09 |
| NLDSS-1515-2t | 2t | 1kg | 2,000e | 150 | 1.53×1.53×0.09 |
| NLDSS-1515-3t | 3t | 1kg | 3,000e | 150 | 1.53×1.53×0.09 |
| NLDSS-1515-5t | 5t | 2kg | 2,500e | 150 | 1.53×1.53×0.09 |
Custom Options for Digital Pallet Floor Scales
Remote Display: Extend visibility of weighing data to a separate location, ideal for large warehouses or production floors.
Computer Integration: Connect scales to PCs or inventory management systems for real-time data recording and analysis.
Mini Printer: Print weight tickets or labels directly at the scale for fast documentation and workflow efficiency.
Alarm Light: Provides visual alerts for weight limits or operational status, improving safety and workflow control.
Bracket:
A sturdy bracket for mounting displays or accessories on the Dwinley Pallet Floor Scale, providing flexible positioning for optimal visibility.
Support Bracket:
A heavy-duty support bracket designed to securely hold additional devices or instruments, ensuring stability and safety in industrial environments.
