Selecting the right load cell is essential for accurate and reliable weighing in any industrial or commercial scale. Understanding factors such as capacity, type, material, and environmental conditions ensures optimal performance and safety. This guide covers the basics of load cell selection, helping users make informed decisions that enhance measurement accuracy, durability, and efficiency across a wide range of applications.
Understanding Load Cells
What is a Load Cell?
A load cell is a sensor that measures force or weight. It converts the force from an object into an electrical signal. Many industries use load cells in scales for different application needs.
How Do Load Cells Work?
A load cell works by deforming slightly when a force is applied. This deformation changes the electrical resistance inside the sensor. The system then converts this change into a readable weight value.
Selecting the right capacity load cell is important for safety and accuracy. Users should always choose a load cell with a load capacity higher than the maximum expected weight. This safety margin helps prevent overload and damage in any application.
The right capacity load cell ensures reliable results in every application. Users should also consider the environment and how it may affect the load cell. Careful planning leads to better performance and longer service life for any application.
Assess Environment and Application
Temperature and Humidity
Temperature and humidity can change how a load cell performs. Some environments have extreme heat or cold, which can affect the accuracy of the load cell. Each application should match the load cell to the expected temperature range.
Vibration and Wind Effects
Vibration and wind can create extra forces on a scale. These forces may lead to unstable readings or damage the load cell. In any application where vibration or wind is present, users should select a load cell designed to handle these challenges.
|
Environmental Factor |
Possible Impact on Load Cell |
Solution for Application |
|---|---|---|
| Vibration | Unstable readings | Use dampening mounts |
| Wind | Fluctuating measurements | Shield or enclose the scale |
Exposure to Chemicals or Moisture
Many industrial settings expose the load cell to chemicals or moisture. These substances can damage the sensor or reduce its lifespan. For each application, users should choose a load cell with proper sealing or protective coatings.
Selecting the right load cell for the environment ensures reliable performance in every application. Careful planning and the right materials help the scale last longer and work safely.
Choose Load Cell Type and Material
How to Choose a Load Cell Type
Selecting the right type is a key step when people choose load cell for an industrial scale. Different types work best for different application needs. Strain gauge load cells are the most common for industrial weighing applications because they offer high accuracy and reliability.

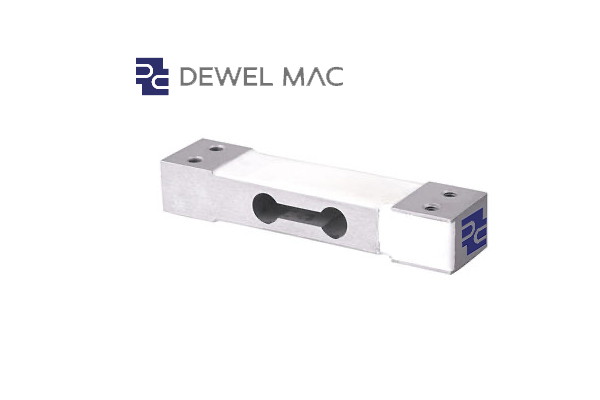

S-beam load cells handle both tension and compression. They fit well in industrial scale setups that require force measurement in both directions. Single-point load cells work best for smaller bench scales or compact industrial scale designs.
Compression load cells support heavy loads from above. These types suit truck scales or large platform scales in industrial weighing applications. Each application requires careful review of the load capacity and the forces involved.
Material Selection
Material choice affects durability and performance. Stainless steel load cells resist corrosion and moisture, making them ideal for harsh environments or outdoor industrial scale use. Aluminum load cells weigh less and cost less, so they fit lighter-duty application needs.
|
Material |
Strength | Corrosion Resistance |
Typical Application |
|---|---|---|---|
| Stainless Steel | High | Excellent | High-quality industrial scale, outdoor, food processing |
| Aluminum | Moderate | Good | Bench scales, portable industrial scale, dry environments |
People should always consider the environment and load capacity when they choose load cell material. Stainless steel works best for wet or chemical-heavy application areas. Aluminum suits dry, clean spaces with lower load capacity needs.
Mounting and Size Options
Mounting and size play a big role in how to choose a load cell for an industrial scale. The mounting method must match the application and available space. Some industrial scale setups need compact load cells, while others require larger models for higher load capacity.
Proper mounting ensures the load cell measures weight accurately. Users should check if the mounting hardware fits the industrial scale and supports the expected load capacity. Incorrect mounting can lead to errors or even damage.
Choosing the right size and mounting option helps the industrial scale work safely and efficiently. Each application may need a different approach, so users should review all requirements before making a decision. Careful planning leads to better results and longer service life.
Accuracy, Calibration, and Maintenance
Accuracy and Resolution
Accuracy and resolution play a key role in every weighing application. Different industries set specific accuracy requirements based on the type of material and the value of the product. Users should always check the accuracy class of a load cell before selecting it for any application.
|
Accuracy Class |
Typical Use Case |
Resolution Level |
|---|---|---|
| C3 | Industrial scales | High |
| C6 | Laboratory balances | Very High |
Meeting accuracy requirements ensures reliable measurements in every application. Users should match the load cell to the needs of their application for the best results.
Calibration Needs
Calibration and maintenance keep a scale working correctly. Regular calibration checks help maintain accuracy requirements over time. Many industries require scheduled calibration and maintenance to meet legal standards for each application.
Calibration and maintenance routines should include zero checks, span checks, and inspection for damage. These steps help prevent errors and keep the application running smoothly.
Maintenance and Longevity
Proper calibration and maintenance extend the life of a load cell. Users should inspect the load cell for signs of wear, corrosion, or physical damage in every application. Cleaning and protecting the load cell from harsh conditions also support long-term use.
A simple checklist for maintenance:
- Inspect for visible damage
- Clean the load cell and mounting area
- Check cables and connections
- Record calibration and maintenance dates
Consistent care ensures the load cell meets accuracy requirements and supports the application for many years.
Conclusion
Choosing the right load cell for scales is crucial for accurate, reliable, and long-lasting performance. By considering factors such as capacity, type, material, environment, and maintenance, users can ensure precise measurements across various industrial applications. Proper selection and care not only prevent errors and damage but also enhance safety and efficiency. Understanding these basics empowers users to make informed decisions, making load cells a vital component in every weighing system.
